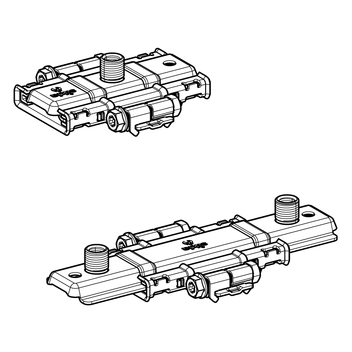

Assembly System siMetrix 46
Slide Set GS H3G-PL 46
Application
Slide Set for single and double guided brackets on siMetrix Profile PRO 46, or directly to the structure. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2".
Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Technical Data

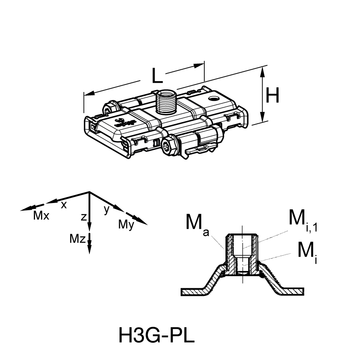

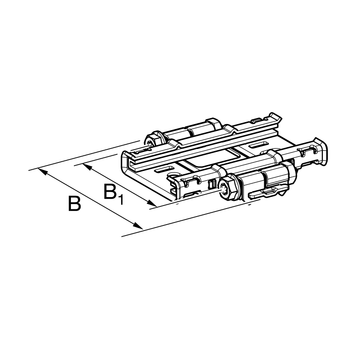

Type | L [mm] | H [mm] | L1 [mm] | B [mm] | B1 [mm] | Mi | Mi,1 | Ma |
---|---|---|---|---|---|---|---|---|
H3G-PL 46 | 155 | 43 | - | 138 | 109 | M10 | M16 | 1/2" |

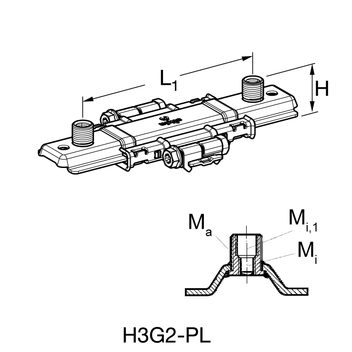

H3G2-PL 46 | 280 | 43 | 200 | 138 | 109 | M10 | M16 | 1/2" |
Typ | Vz,zul [kN] | - Vz,zul [kN] | ± Mx,zul [kNm] |
---|---|---|---|
GS H3G-PL 46 | 11,04 | 3,45 | 0,13 |
GS H3G2-PL 46 | 11,04 | 3,45 | 0,13 |
Permanent temperature range Slide Set: | 130°C |
Static friction coefficient µ0: | 0,07 |
Sliding friction coefficient µ: | 0,07 |
Tightening torque siMetrix screws: | 15 Nm |
Material: | |
Slide element and retaining plate: | Steel, HCP |
Slide bar: | Polyamide (glass-fibre reinforced), MoS2 coated |
Type | max. lever arm [mm] | max. glide path s [mm] |
---|---|---|
H3G-PL 46 | 500 | 100 |
H3G2-PL 46 | 500 | 140 |
