Fastening to Concrete and Steel

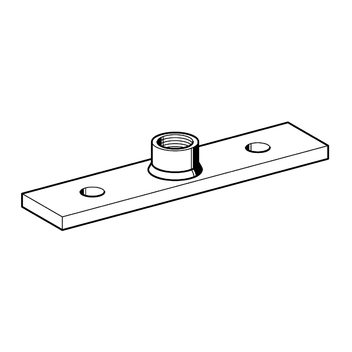

Mounting Plate GPL Stabil HCP

Application

Attachment component to connect Beam Bracket Profil 100 or Channel MS.

Installation

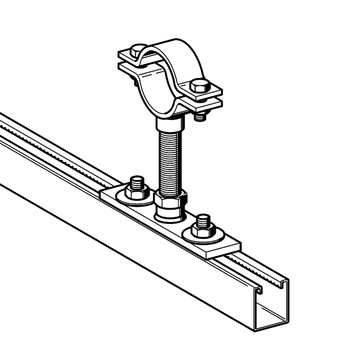

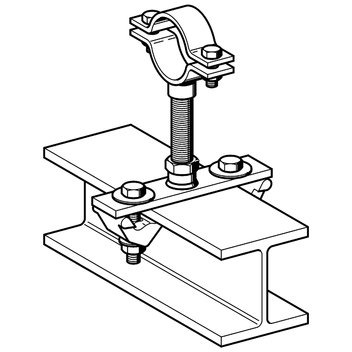

Requires assembly to Beam Bracket Profil with Set MS 5P or two T-Head Bolts TBO HZ 41 M12 at Channel MS.

Technical Data

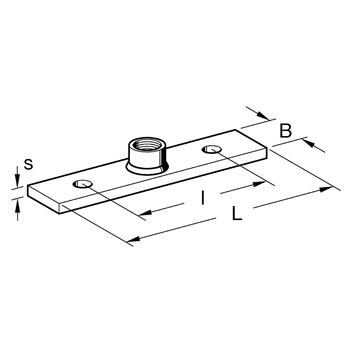

L x B
[mm]
s
[mm]
l
[mm]
Perforation
[mm]
Tension
[kN]
Lateral force
[kN]
Perm. bending moment
[Nm]
200 x 40 8 112 13 18,0 13,0 29,6

Material
Steel, HCP

TypeW
[kg]
Quantity
[pack]
Part
number
GPL Stabil R 1/2"-1000.5250 183791
