Application

Insulated Pipe Support Inserts are designed to be used in pipe hanger brackets and will support the compressive loads imposed by horizontal pipework carrying water or liquids. Their use enables the specified thickness of insulation to be maintained at pipe supports. They also facilitate the installation of a continuous and fully sealed vapour barrier, which is particulary important on cold or chilled pipework. Insulated Pipe Support Inserts may be used to support mild steel, stainless steel, copper and plastic pipework operating in the temerature range of -180°C to +120°C.

Scope of delivery

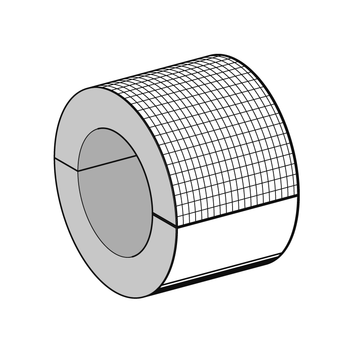

Pipe Insulation and Insulated Pipe Support Inserts have a factory-applied, high-performance, reinforced aluminium foil vapour barrier jacket, a resilient, protective, low-permeability facing. The facing is factory-applied so as to avoid site application, which carries the risk of vapour barrier damage, and with it, a risk to the integrity of the system.

Installation

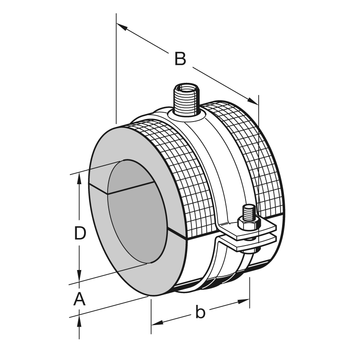

The insulating inserts is recommended to be used in combination with a Sikla Pipe Clamp type "Duo", "Stabil D-3G", or "Stabil D".

Technical Data

Insulation component: manufactured from high-density rigid phenolic insulation, which has an open cell structure. High-density rigid insulation is entirely CFC/HCFC-free and exhibits zero Ozone Depletion Potential (ODP). The density used depends upon applied load.

Insulated Pipe Support Inserts are available in the following densities:

• 60 kg/m³
• 80 kg/m³
• 120 kg/m³
• 160 kg/m³

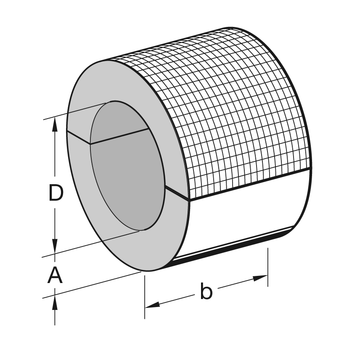

For 15 mm Insulation Thickness;

For 20 mm Insulation Thickness;

For 25 mm Insulation Thickness;

For 30 mm Insulation Thickness;

For 40 mm Insulation Thickness;

For 50 mm Insulation Thickness;
