Pressix CC 27 - Channel System
Sound Absorption Unit SDE 27
Application
Sound Absorption Unit to be used in combination with Sikla Channels MS 27 in ducting systems (respecting sound proof demands according to DIN 4109).
The geometry of this element reliably secures sound absorption between channel and suspension.
Scope of delivery
Completely assembled with inserted and retained washer.
Installation

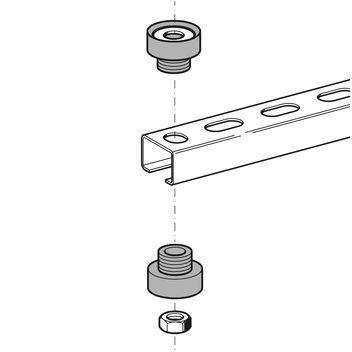

Clamp the Sound Absorption Unit into the round hole of the channel back and into the channel opening. Thread to be pulled through and contered afterwards.
Technical Data
| Material: | TPE, black |
| Max. admissible load: | 0,3 kN |
| Temperature range: | -50°C to + 110°C |
| Fire resistance: | B2 according to DIN 4102, non-dripping |
| Hardness: | 50°+/-5° Shore |
