Application

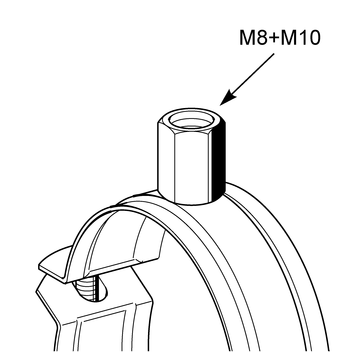

Two-piece pipe clamp with double thread connection (M8/M10) for the installation of pipelines.

Scope of delivery

Supplied with two bolts partially mounted on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidental unscrewing.

Technical Data

Size
[mm]
Max. adm. load (tension)
Tightening torque
[Nm]
13 - 73 0.6 kN 2
75 - 167 2.5 kN 2

Material:
Steel, electro-galvanised

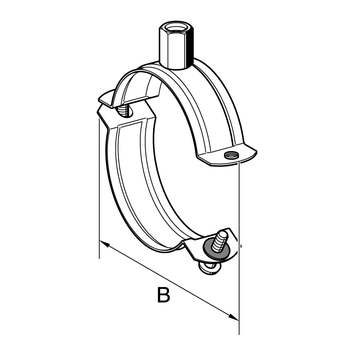

Size range
[mm]
Material
W x th
[mm]
W
[kg]
Quantity
[pack]
Part
number
13 - 1820 x 1.50.04100 173216
19 - 2220 x 1.50.05100 173225
23 - 2620 x 1 .50.05100 111470
27 - 3020 x 1.50.05100 173234
32 - 3620 x 1.50.05100 173243
40 - 4420 x 1.50.0650 173252
48 - 5420 x 1.50.0750 173261
55 - 5920 x 1.50.0850 182990
60 - 6620 x 1.50.0850 173279
68 - 7320 x 1.50.0925 173288
75 - 8025 x 2.00.1525 173297
84 - 8925 x 2.00.1625 173306
90 - 9825 x 2.00.1625 186023
94 - 10125 x 2.00.1725 186032
102 - 10825 x 2.00.1825 173315
110 - 11525 x 2.00.1825 173324
118 - 12525 x 2.50.2425 186041
129 - 13625 x 2.50.2625 191387
138 - 14425 x 2.50.2725 191396
144 - 15325 x 2.50.2925 191405
159 - 16725 x 2.50.3025 191414
