Pipe Clamps & Accessories

Duo Clamp SRS with Lining

Application

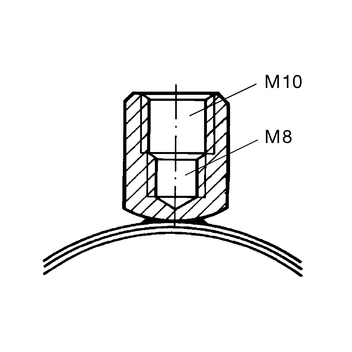

Two-piece pipe clamp with double thread connection (M8/M10) and sound absorption lining for the installation of pipelines. Applicable for sound-absorbed installations according to DIN 4109 specifications.

Scope of delivery

Supplied with two bolts partially mounted on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidental unscrewing.

Technical Data

Size
[mm]
Working load (tension)
Tightening torque
[Nm]
12 - 64 0.45 kN 2
67 - 108 0.90 kN 2
110 - 219 1.00 kN 2

Material:
Clamp:
Steel, electro-galvanised
Sound absorption lining:
SBR/EPDM (black)
Size range
[mm]
NBMaterial
W x th
[mm]
W
[kg]
Quantity
[pack]
Part
number
12 - 151/4"20 x 1.50.05100 159368
15 - 193/8"20 x 1.50.05100 159377
20 - 231/2"20 x 1.50.06100 159386
25 - 283/4"20 x 1.50.06100 159395
32 - 351"20 x 1.50.07100 159401
40 - 451 1/4"20 x 1.50.0950 159614
48 - 521 1/2"20 x 1.50.0950 159623
52 - 5820 x 1.50.1050 179003
60 - 642"20 x 1.50.1150 159632
67 - 7225 x 2.00.1925 179012
73 - 802 1/2"25 x 2.00.2025 159641
81 - 8725 x 2.00.2125 192665
86 - 913"25 x 2.00.2125 159650
102 - 10825 x 2.00.2525 179021
110 - 1154"25 x 2.50.3025 159669
120 - 12825 x 2.50.3425 191459
135 - 14325 x 2.50.3725 191477
149 - 16125 x 2.50.3925 191486
162 - 17025 x 2.50.4025 191468
198 - 20725 x 2.50.4825 191495
207 - 21925 x 2.50.5220 191504
