Flange Screw SCR FLA HCP

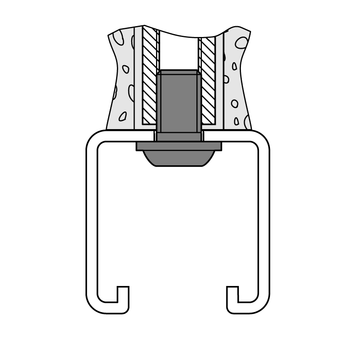

Type M10 x 15 allows fixation of Channels by means of Drive Plug AN, without exceeding the max. permissible screw-in depth or to go under the min. screw-in depth required.

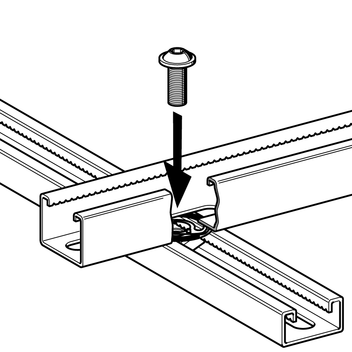

Type M10 x 25 is the ideal connecting part for two Sikla Channels MS 41.
Versions "TT" are self-forming screws. Type TT M10 x 60 is only suitable for connecting mounting rails ≤ 41 mm high with siFramo profiles.
The maximum admissible tightening torque strictly has to be observed.
|M10 x 15 and M10 x 25|
| max. adm. tightening torque:|| 50 Nm (max. adm.)|
| Drive:|| Internal hexagon SW 6|
|TT M10 x 30 and TT M10 x 60|
| max. adm. tightening torque:|| 20 Nm (max. adm.)|
| Drive:|| Torx-T50|
| Material:||Steel, HCP|
