Stainless Steel Standard Range

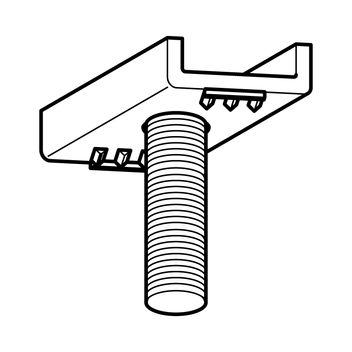

T-Head Bolt TBO HZ 41 ss
Application
To be used with Channels MS 41 ss.
Technical Data
| Type | Tightening torque Mdmax [Nm] | perm. bending moment 1) [Nm] |
|---|---|---|
| HZ 41 M8 | 10.0 | 5.0 |
| HZ 41 M10 | 18.0 | 10.0 |
| HZ 41 M12 | 32.0 | 17.5 |
| 1) | The actual bending moment shouldn't exceed the permissible bending moment of the channel acting laterally. |
| Material thickness channel [mm] | M8 FZ ≤ [kN] | M10 FZ ≤ [kN] | M12 FZ ≤ [kN] | M8 FQ ≤ [kN] | M10 FQ ≤ [kN] | M12 FQ ≤ [kN] | |
|---|---|---|---|---|---|---|---|
| 1.5 | 4.7 | 4.7 | 7.5 | 1.8 | 2.9 | 7.5 | |
| 2.0 | 5.8 | 5.8 | 10 | 2.1 | 3.4 | 9 | |
| 2.5 | 5.8 | 5.8 | 11 | 2.6 | 4.1 | 9 | |
| 3.0 | 5.8 | 5.8 | 13 | 2.8 | 4.4 | 9 |
Notice: The permissible bearing capacity of the channels is to be respected.
| Material: | |
| T-Head: | Stainless steel 316 |
| Threaded rod: | Class A4-50 |
