Beam Section Holder TPH F 80

Application

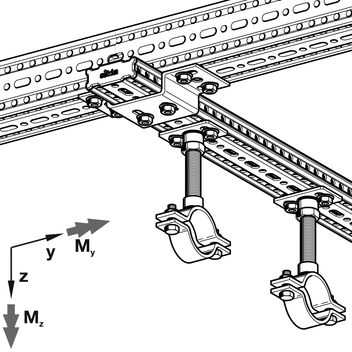

Interface element to connect 90° intersecting Beam Sections F80. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories.

Installation

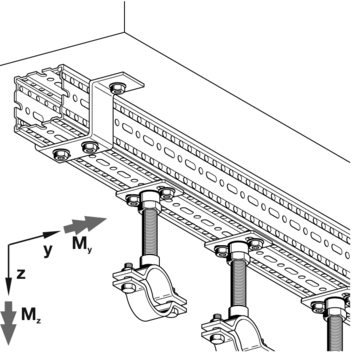

Connecting one Beam Section F80 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes. Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.

Technical Data

Type
L x w x th
[mm]
ø d1
[mm]
Elongated hole LL1
d x a [mm]
Elongated hole LL2
d x a [mm]
TPH F 80/30 181 x 50 x 4 13 11 x 20 -
TPH F 80/30 C 199 x 80 x 4 14 11 x 20 11 x 20
TPH F 80 181 x 50 x 4 13 11 x 20 -
TPH F 80 C 199 x 80 x 4 14 11 x 20 11 x 20

Type
Fx [kN]
Fy [kN]
Fz [kN]
My [kNm]
Mz [kNm]
TPH F 80/30 6.2 20.8 13.6 0.9 0.9
TPH F 80/30 C 6.2 12.7 12.3 0.6 0.5
TPH F 80 6.2 20.8 13.6 0.9 0.9
TPH F 80 C 6.2 12.7 12.3 0.6 0.5

The above load data indicates permissible loads and includes Partial Safety Factors γM2 = 1.25 (EN 1993-1-8:2010-12,
Tab. 2.1) and γG = 1.35 (EN 1990:2010-12, Tab. A1.2(B)) for general permanent actions.

Material:
Steel, HCP

Approvals / Conformity

TypeW
[kg]
Quantity
[pack]
Part
number
TPH F 80/300.410 116672
TPH F 80/30 C0.510 116673
TPH F 800.510 195765
TPH F 80 C0.810 111732
