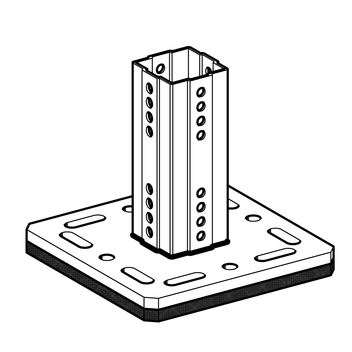

Insulated Foot Plate SHB F 80

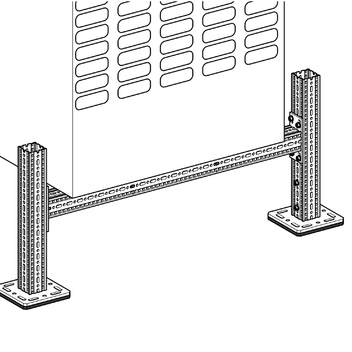

Integrated footplate and permeable rubber compound mat to provide a solution for the support of building services, without the need for penetrative supports. In combination with the Sikla siFramo TP F 80 section, any frame structure may be built up from the footplates.
Especially suitable for maintaining the thermal and waterproofing integrity of a roof or basement floor as no penetrative fixings are required to secure the footplates for service supports.

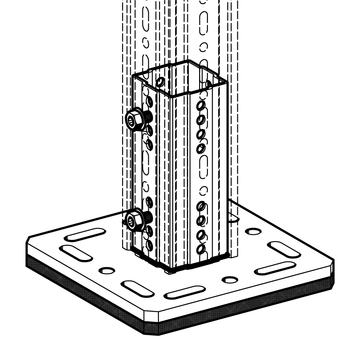

Assembly to beam section F 80 by means of 4 self forming screws FLS F.

Technical Data

statical E-module:
according to
DIN 53513

0.8 - 0.9 N/mm2
dynamical E-module:
according to
DIN 53513

0,6 - 2.2 N/mm2
Compression set:
DIN 53572
approx. 4.0 % measured 30 min.
after release at 50 % compression /
23°C after 72 Std.
Tensile strength:
DIN 53571
0.40 N/mm2 min.
Ultimate elongation:
DIN 53571
70 % minimum value
Tear strength:
DIN 53515
3.4 N/mm2 minimum value
Fire resistance:
DIN 4102

Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. felt) is necessary. Furthermore the statics have to be verified by a qualified engineer..

Further dimensions of SHB F 80-200 see End Support WBD F 80.

steel, HCP, rubber-compound material

Approvals / Conformity

dimensions [mm]
SHB F 80-220220 x 2205.71 198926
