Assembly Group BG57 MS41

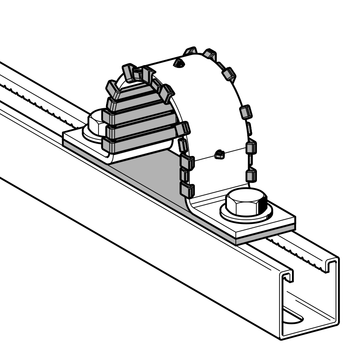

An Assembly Group for the creation of guided supports for pipes without complex requirements and without heat insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure. A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the captive plastic linings and slide plate, meaning that VA pipes can also be secured, for example.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

Parts list:

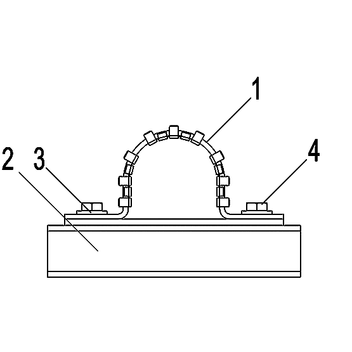

Item 1 U-Camp RUC I
Assembly Kit MKit MS RUC I consists of:
Item 2 Threaded Plate NT CC 41-M10
Item 3 U Washer US 10/125
Item 4 Hexagon Bolt SKT M10 x 25


The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

Clamp body:
Steel, HCP
Lining and slide plate:
Thermoplastic resins
Area of use:
-20°C to +90°C (at lining and slide plate)

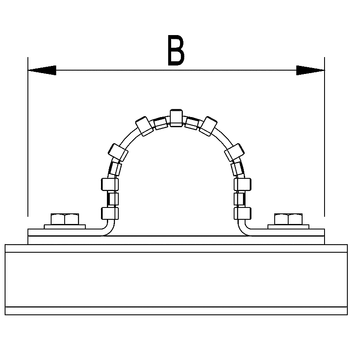

TypeNominal widths
27151340.341 114670
33201400.351 114671
40251470.381 114672
48321550.401 114673
55401610.421 114674
67501730.471 114675
83651890.541 114676
95802020.581 114677
1211002270.671 114678
