Pipe Clamps & Accessories

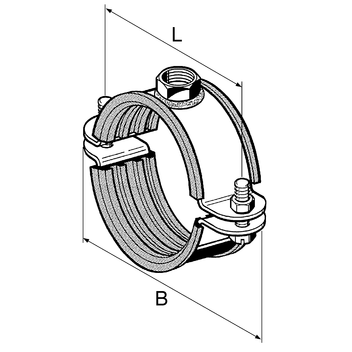

Stabil D-M16 w/ Lining
Application
For soundproof installation of pipes in M&E services and plant construction.
Scope of delivery
With sound absorption lining; with welded on M16 nut; clamping bolts and nuts included in loose form.
Technical Data
| Size range [mm] | Max. adm. load (tension) | Tightening torque [Nm] |
|---|---|---|
| 320 - 407 | 9 kN | 20 |
| 410 - 521 | 15 kN | 20 |
The max. admissible load has been determined by using statistical methods resulting from the breaking loads, observing a max. admissible deformation of 1.5 mm resp. 2 % of the max. tensible pipe dia.
| Material: | |
| Metal components: | Steel, electro-galvanised |
| Sound absorption lining: | SBR/EPDM (black) - (see chapter "Sound Absorption Products") |
