Pressix CC 27 - Channel System
Nail Anchor PN 27
Application
Suitable for push-through mounting solutions for quick and safe fixation to concrete ceilings or walls in closed rooms - not suitable for damp locations.
- Easy drilling (6 mm only ) and simple impact mounting.
Installation
Setting Tool PN is most suited for mounting purposes.
Technical Data
| Permissible load in the tensile zone [kN] for installation solutions in concrete ≥ B25 acc. to approval) | 2,4 |

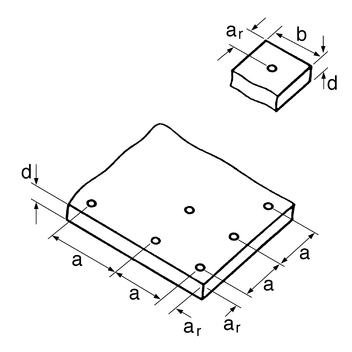

| Centre distance a ≥ [mm] | 200 |
| Edge distance ar ≥ [mm] | 150 |
| Minimum thickness of component d [mm] | 80 |

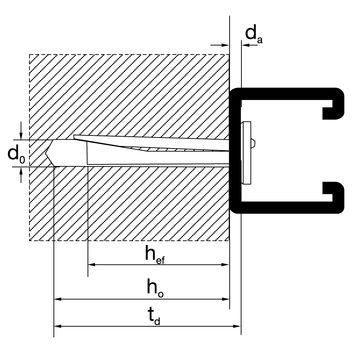

| Diameter of drill d0 [mm] | 6 |
| Depth of bore hole h0 ≥ [mm] | 40 |
| Anchoring depth hef ≥ [mm] | 32 |
The safety factor accord. to ETAG is respected. Values of the mentioned approval are valid.
| Material: | Steel, electro-galvanised |
Approvals / Conformity
ETA-Approval: ETA-06/0259
Approved in the tensile zone for multiple mounting solutions to concrete exposed to mainly dead static loading.
Permissile load fire resistance:
| 30 min. N(30) | = | 0,8 kN |
| 60 min. N(60) | = | 0,7 kN |
| 90 min. N(90) | = | 0,6 kN |
| 120 min. N(120) | = | 0,4 kN |
R30 to R120
| Centre distance a ≥ [mm] | 200 |
| Edge distance ar ≥ [mm] | 150 |
