Pressix CC 41 - Channel System

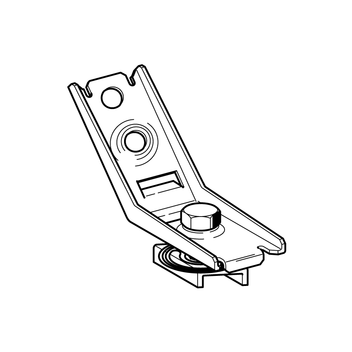

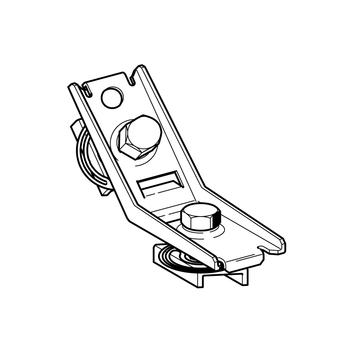

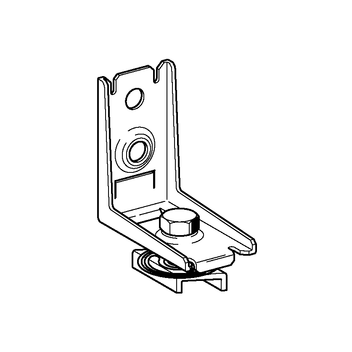

Angle Connector CN CC 41 Stabil
Application
Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling.
- High-speed assembly system for 90°- and 45°-structures of Channels MS 41.
- Locks automatically by pushing down the bolt head and at the same time supports its own weight
- Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.
Technical Data
| Channel thickness [mm] | FZ [kN] | FQ [kN] |
|---|---|---|
| 1.5 | 3.0 | 2.3 |
| 2.0 | 3.5 | 2.3 |
| 2.5 | 3.5 | 3.5 |
| 3.0 | 3.5 | 3.5 |
| Torque: | 50 Nm |
| Material: | Steel, pre-galvanised |
Approvals / Conformity
 | This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655. |
